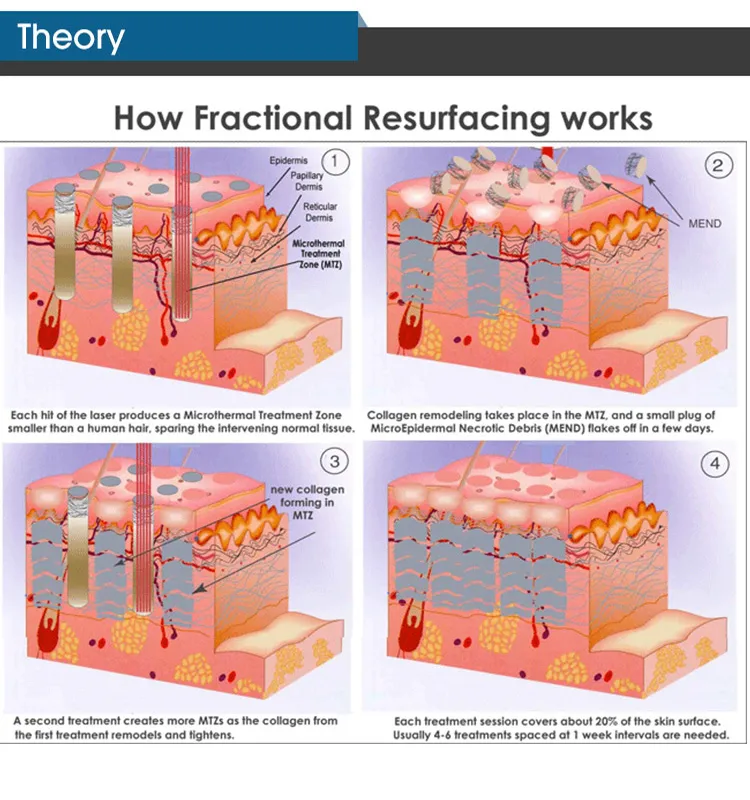

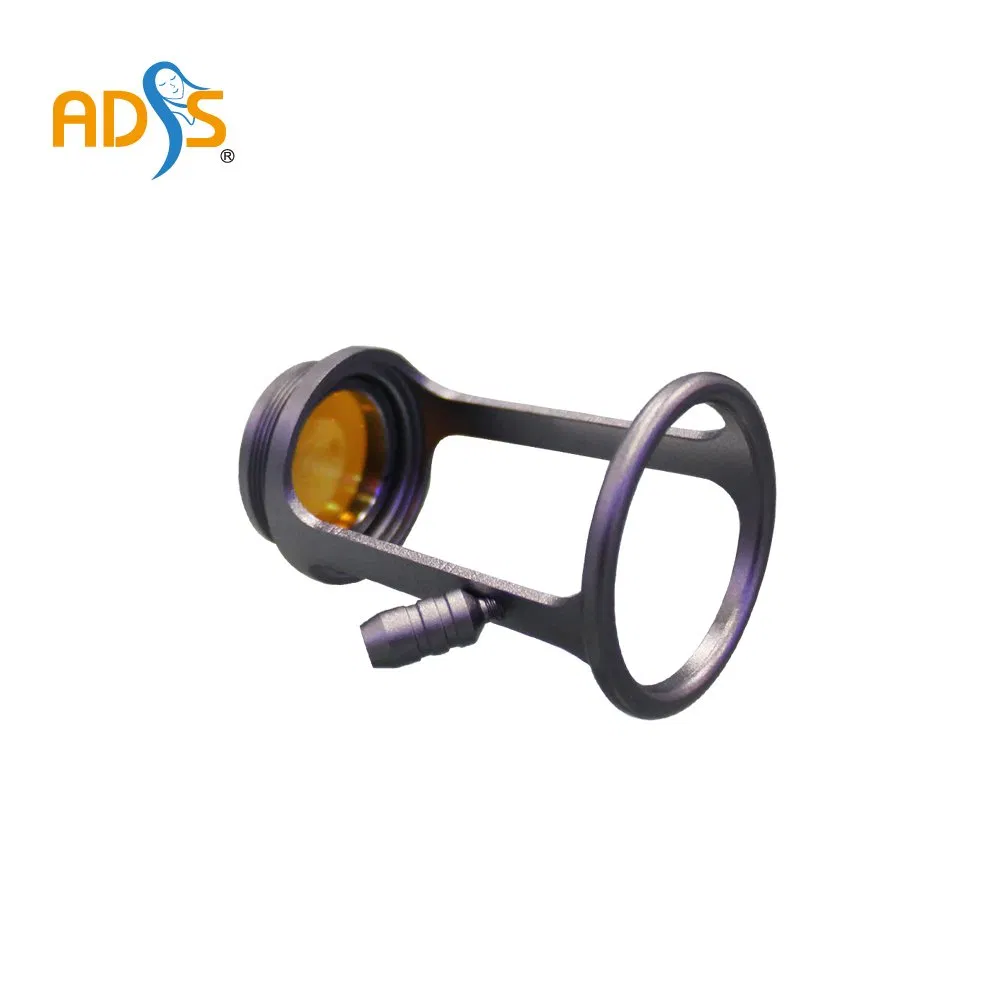

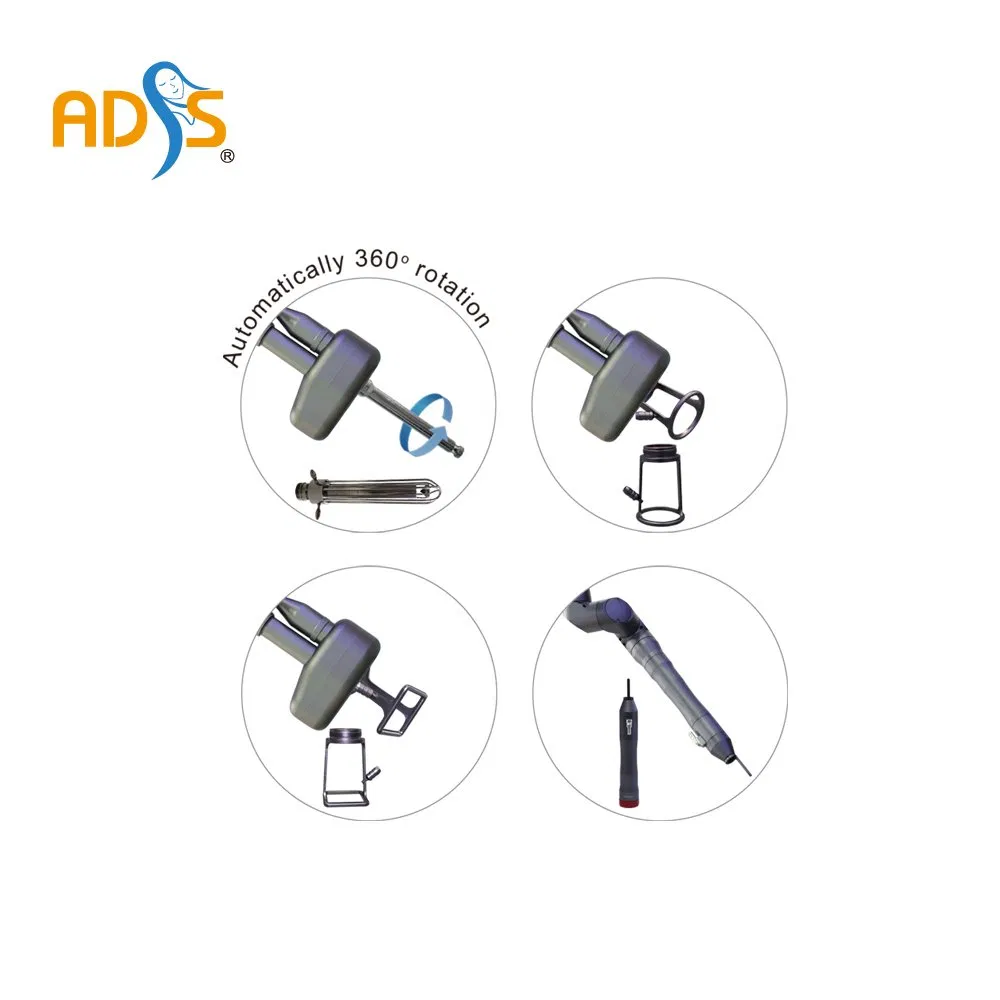

The Co2 laser uses a unique head piece which tracks the CO2 10.6 um wavelength light as it passes light through its optical lens to penetrate the skin. We can control the depth of the penetration from only a few micrometers in depth (only as deep as a few sheets of paper) to much deeper with tiny thermal channels. This will also determine the length of healing, the number of treatments and the cost. Each thermal channel creates a small micro-injury but does not significantly disturb or disrupt the surrounding tissue.
These microscopic injuries caused by the laser (around 15-20% of the treated area) are the beginning of the healing process. By creating thousands of these perforations underneath the skin, your epidermis layer starts to heal from the edge of these microscopic perforations very quickly. By healing so fast it remodels tightens and stimulates the collagen, your skin tightens which in turn smooth out lines, and significantly improves your skins tone and complexion.
With moderate to strong treatment you can expect an immediate tightening of the skin with some noticeable results seen in as little as one treatment. A single treatment can lessen the look of wrinkles and fine lines from your face for up to several months. More than one treatment may be needed for deep scarring to be removed. You can be assured a faster healing time than other treatments such as standard CO2 laser skin resurfacing, dermabrasions, and even deep chemical peels. You can also have a mild treatment with some improvement in skin texture and a quick return to normal activities.

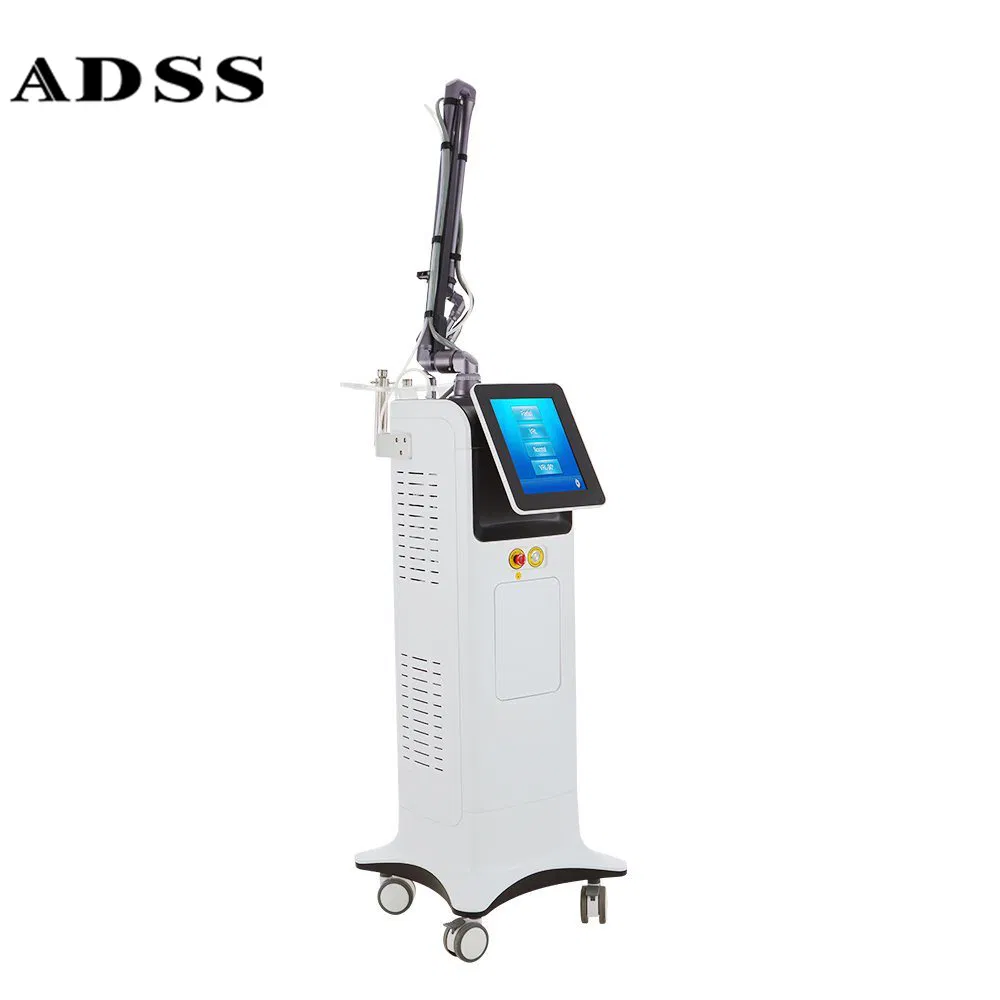

| Wavelength | 10.6um |
| Laser type | COHERENT Co2 LASER |
| Controller | 10.4''color LCD display |
| Pulse radio frequency | 0.53w |
| Working state | Ultra pulse mode |
| Average power | 40w |

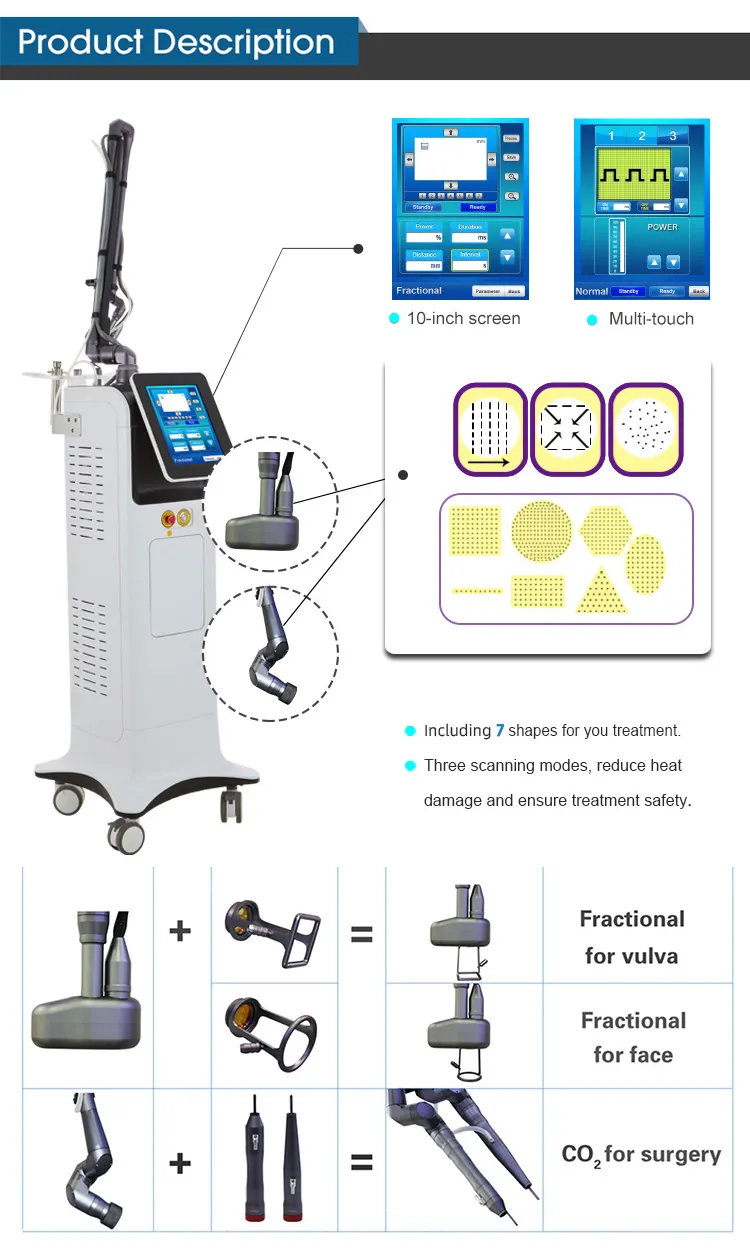

| Scan pattern | Square, rectangle, round, triangle, oval, 6-diamond shape, line or customized graphics |
| Scan pattern size | 0.1x0.1mm_20x20mm |
| Scan mode | free scan; Sequence scan; maximum distance scan |
| Spot size | ≥0.1mm at the focus |
| Pulse duration | 0.1-10ms adjustable |
| Spot distance | 0.1-2.6mm adjustable |
| Pulse energy(power) | 1mj to 100mj adjustable |
| Interval between scanning | 0-6s |
| Interval between spots | 1-10ms |
| Laser apparatus | Sealed off laser unit stimulated by direct current |
| Condenser focus | F=50mm |
| Beam divergence angle | 0.3mrad |
| Aiming beam | 635nm infrared ray |
| Beam transport device | 7 articular optical arm |
| Cooling system | air |
| Program language | English |
| Dimension of machine | 46*42*125cm(FG900) / 32*54*60cm(FG900-B) |
| Dimension of package | 54*63*140cm(FG900) / 49*67*71cm(FG900-B) |
| N.W. | 43kg(FG900) /28.5kg(FG900-B) |
| G.W. | 66kg(FG900) /45kg(FG900-B) |
| Packing | Aluminum alloy case |
| Voltage | 220v/110v |
A1: It operates by emitting a 10.6 um wavelength laser beam that passes through an optical lens to penetrate the skin. By creating thousands of microscopic thermal channels (micro-injuries), it triggers the body's natural healing process, stimulating collagen remodeling and tightening the skin without disrupting the surrounding tissue.
A2: The device is highly effective for smoothing out wrinkles and fine lines, reducing the appearance of acne and traumatic scars, shrinking pores, treating sun-damaged skin, minimizing under-eye bags, and reshaping lips.
A3: Immediate skin tightening and texture improvements can often be seen in as little as one treatment. While mild lines require fewer sessions, multiple treatments may be necessary to fully resolve deep traumatic or acne scarring.
A4: It utilizes a 40-watt high-quality glass laser tube for stable energy output, features 3 scanning patterns to minimize hyperpigmentation risk, has a built-in air jet to cool the skin and eliminate smoke, and offers faster recovery times compared to deep chemical peels or dermabrasions.
A5: Yes, the system features humanized software control with settings optimized for 6 distinct skin types, ensuring a safe, controllable, and comfortable treatment with minimal pain.
A6: The machine can output several scan patterns including square, rectangle, round, triangle, oval, 6-diamond, and simple lines. The scanning pattern size is highly adjustable, ranging from 0.1x0.1mm up to 20x20mm.
