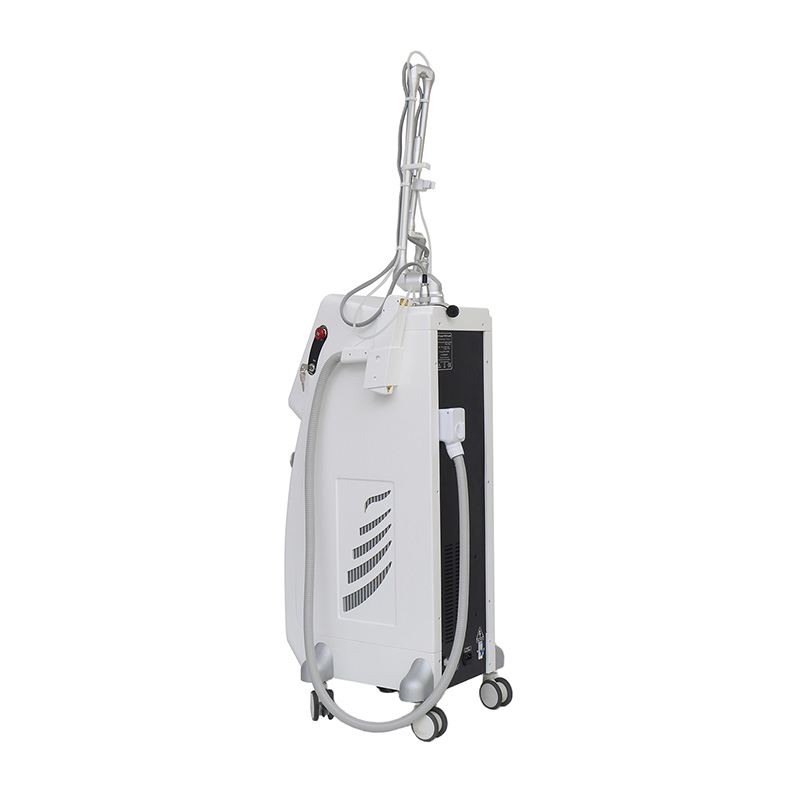

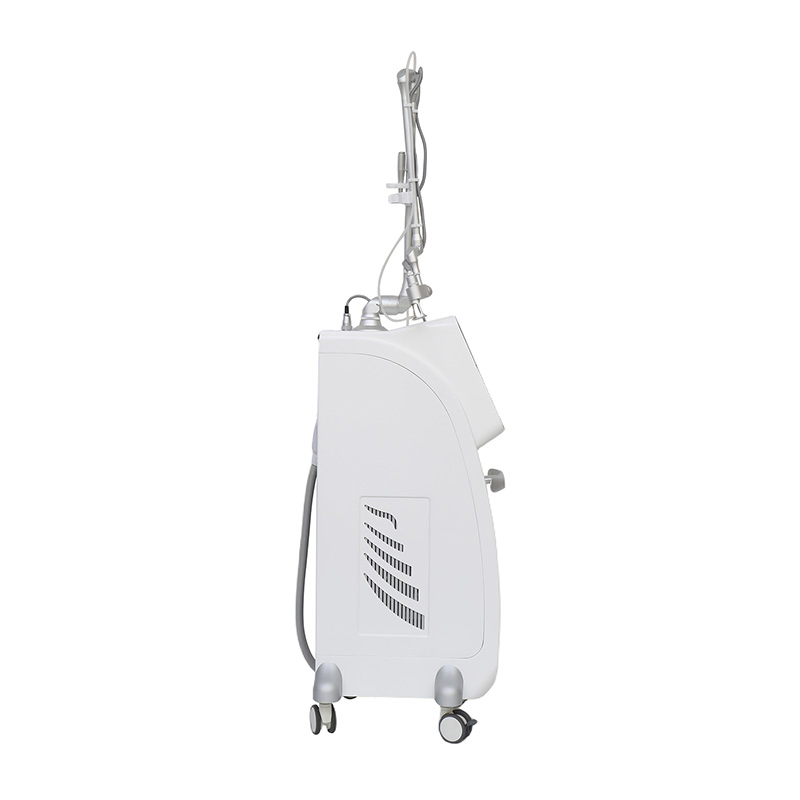

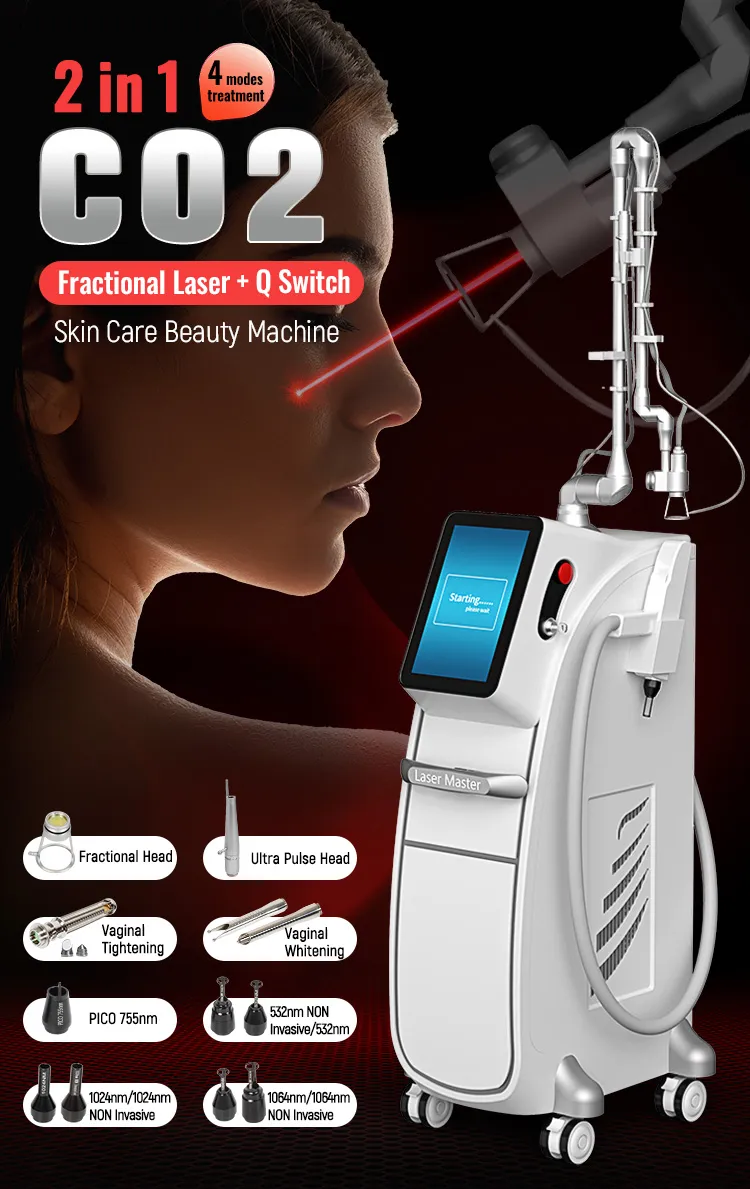

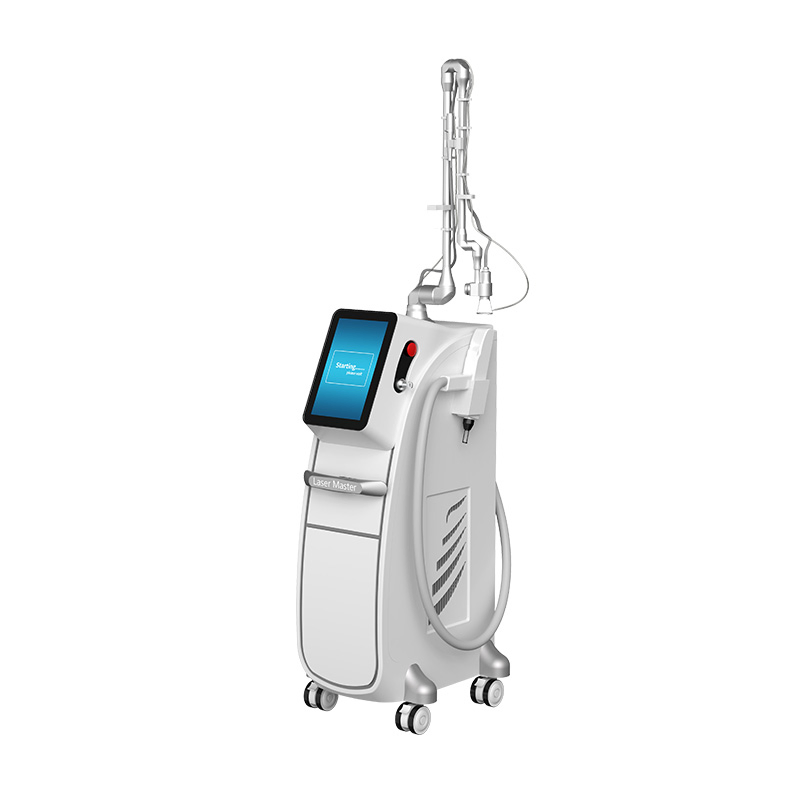

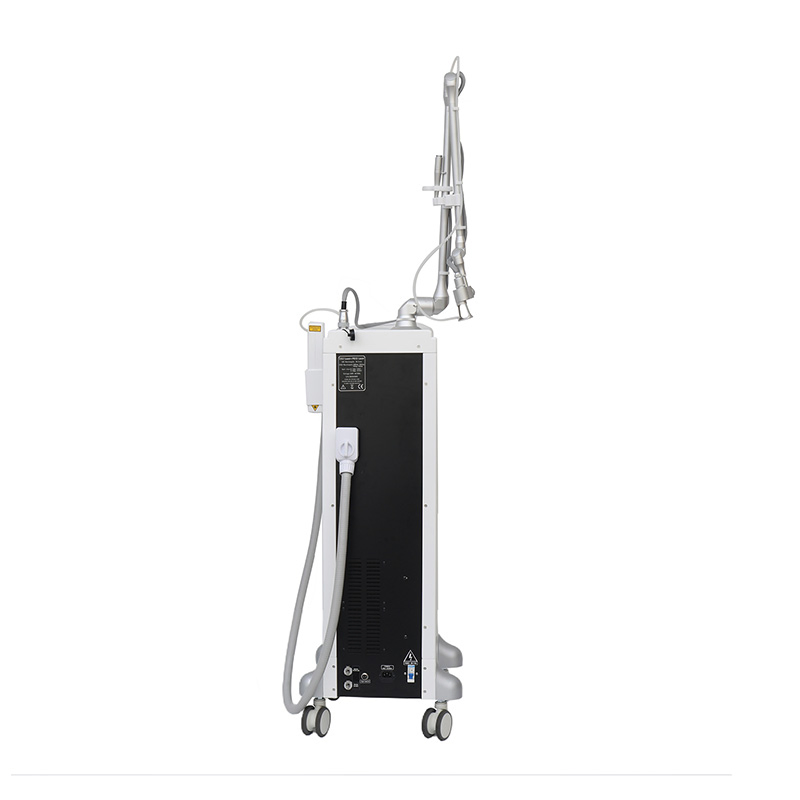

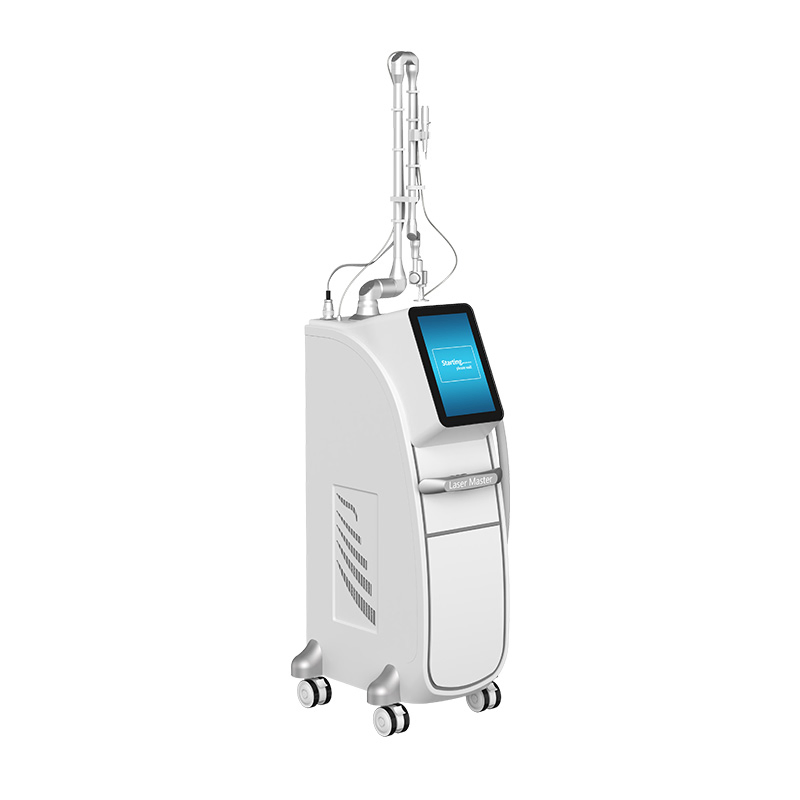

2 in 1 Resurfacing Fractional Laser CO2 Scar Treatment for Acne Vaginal Tightening Skin Care Q Switch Machine

Customization: Available
Type: Laser Beauty Equipment
Theory: CO2 Laser

Product Description

Overview
Application
Salon
Portable
Non Portable
Product Name
Bg268 CO2 Laser
Transport Package
Wooden Case
Specification
116*56*47cm
HS Code
8543709990
Production Capacity
300PCS/Month

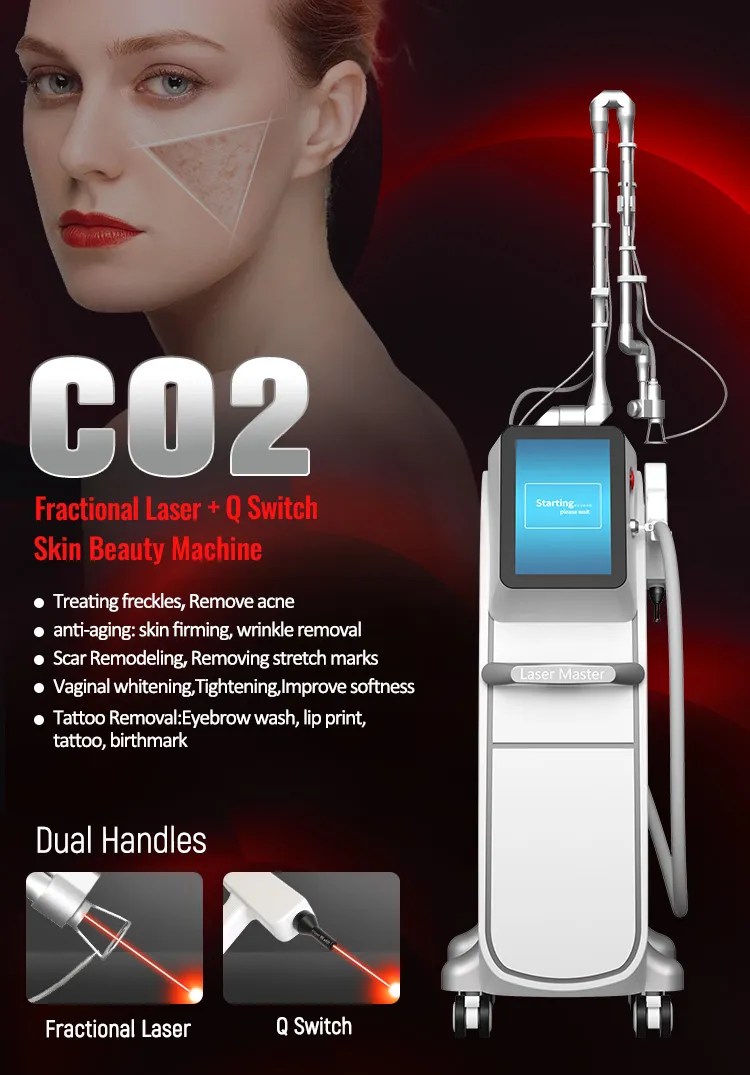

2 in 1 Resurfacing Fractional Laser Co2 Scar Treatment for Acne Vaginal Tightening skin care Q Switch Machine
Principle
Fractional ablative Co2 resurfacina delivers 10600nm laser in fractional manner into the skin while leavina the untreated surroundina areas intact. laser creates microsconic thermal dot on surface and performs within tissues. offerina improve skin tiahtenina, age spots, fine lines, acne scars. stretch marks removal and vulva reiuvenation. The untreated tissue helps to accelerate the healing process and reiuvenate the skin by promoting microcirculation and new cell genesis.

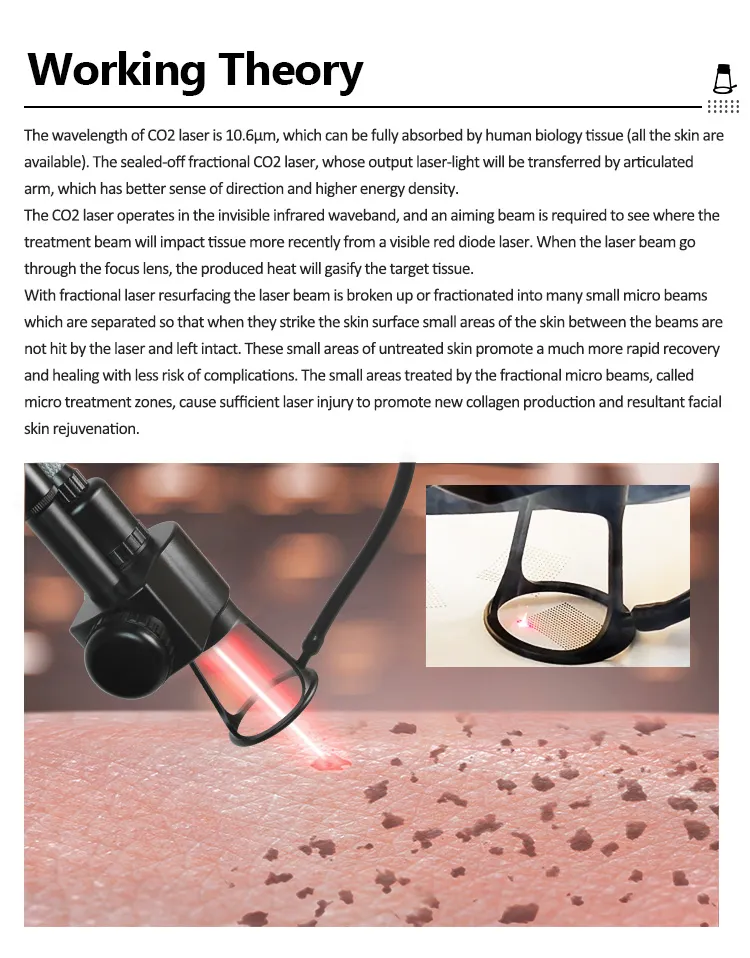

Co2 Resurfacing Principle Diagram

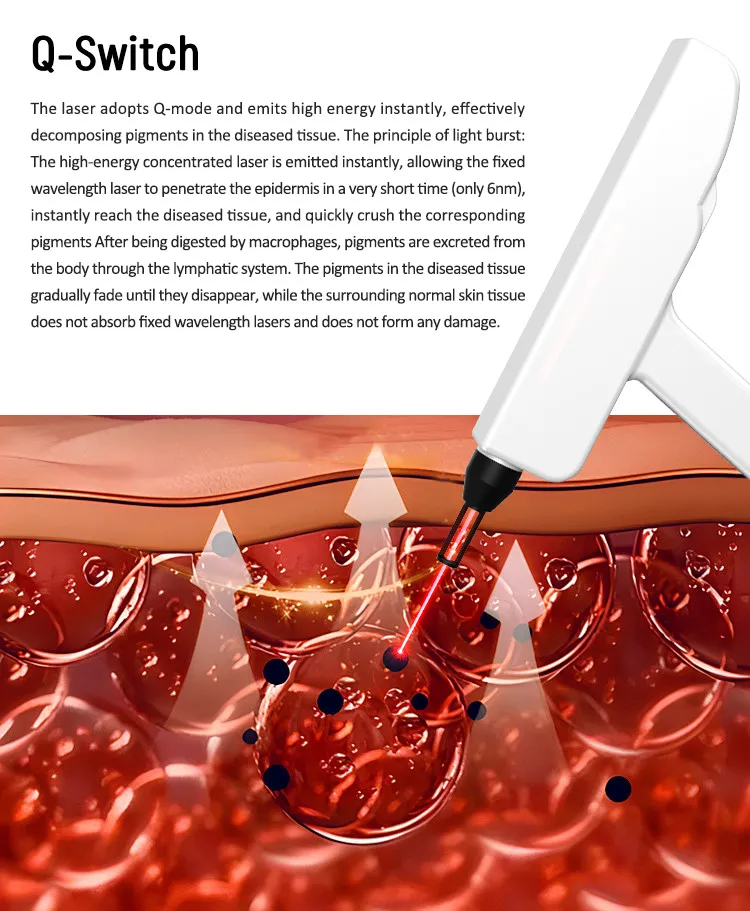

Q-Switch
Adopting Q-mode, the laser instantly emits high energy to effectively break down pigments in the lesion tissue. That is, the principle of light burst: the high energy gathered by the laser is emitted instantly, which makes the fixed wavelength laser penetrate the epidermis in a very short time (only 6nm) to reach the diseased tissues instantly, and quickly smash the corresponding pigment, and the corresponding pigment group expands extremely fast by heat, and instantly bursts and breaks up, and a part of the (superficial epidermis) pigment group pops out of the body in succession, and a part of the (tissue-based) pigment group breaks up into the fine particles which can be phagocytosed by the macrophage in the body, and is digested by the macrophage, and finally discharged out of the body through the circulation of the lymphatic system. After being digested by macrophages, the pigment will be discharged out of the body through the lymphatic system of the human body, and the pigment of the diseased tissues will gradually become lighter until it disappears, while the surrounding normal skin tissues will not form any damage due to non-absorption of the fixed wavelength laser.
Application
(1) CO2 Laser
  • Remove acne and acne marks.
  • Eliminate dry pattern, fishtail, etc. around the eyes.
  • Anti-aging: skin firming, wrinkle removal, improve the skin condition.
  • Treatment of pigmented lesions such as freckles and zygomatic mother spots.
  • Scar: treatment of depressed, old dispersion, convex vascular / fibrous scar.
  • Stretch marks.

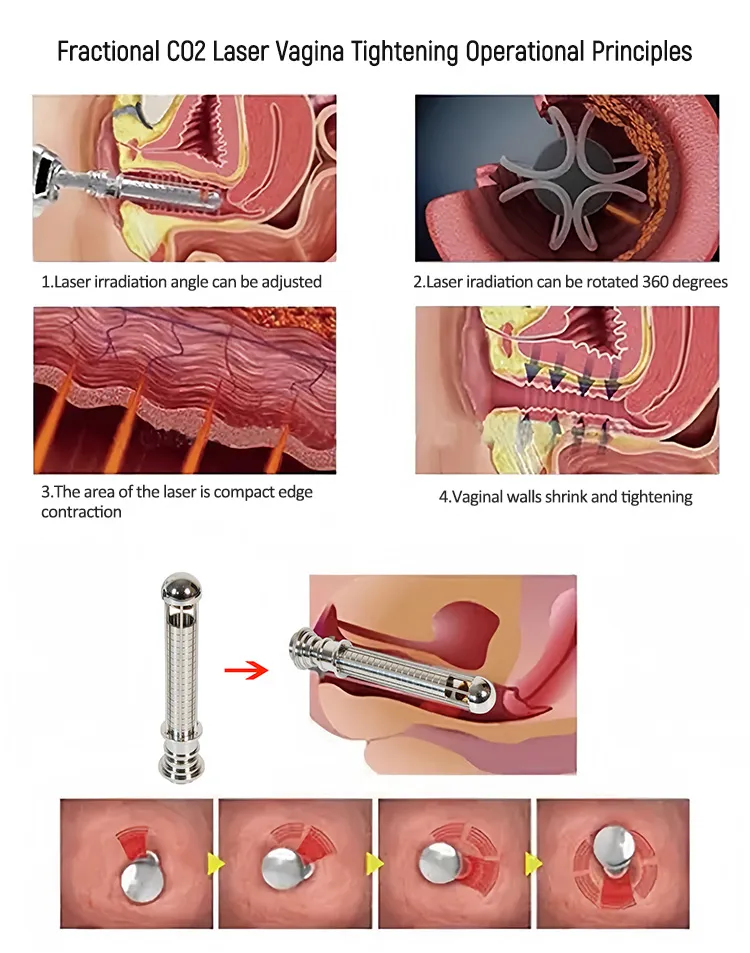

  • Improves tissue tone and tightness in the labia externa and inside the vagina, tightens the skin and tissues, improves the tone, softness and moistness of the tissues.

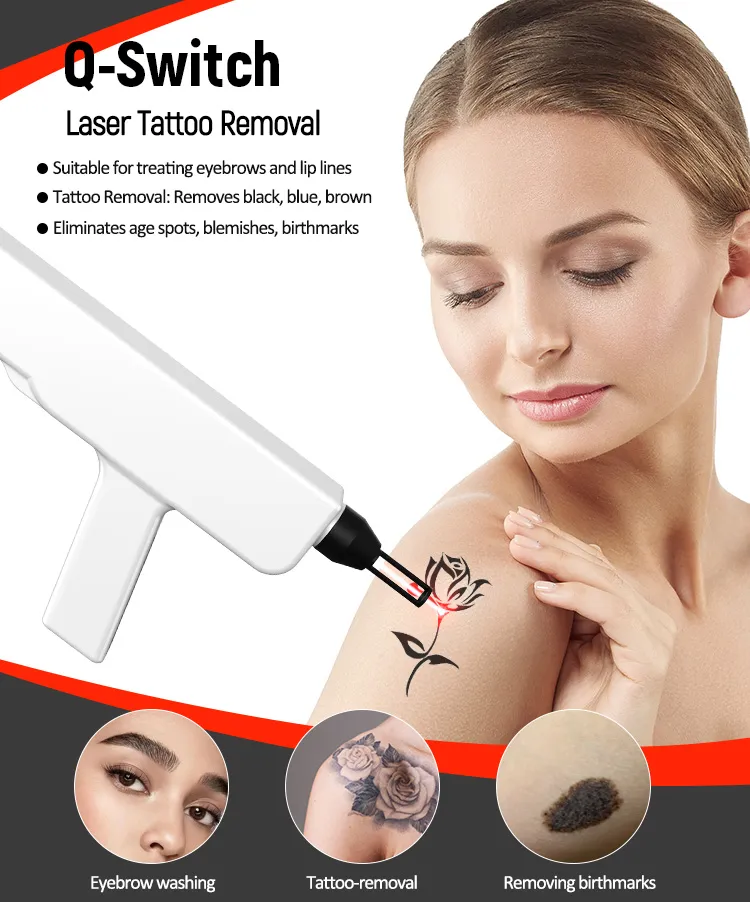

(2) Q-Switch
  • Effectively treats exogenous hyperpigmentation and endogenous pigmented lesions formed by mixing color pigments.
  • Remove black, blue, brown and red pigments.
  • Suitable for treating eyebrows and lip lines.
  • Tattoo Removal: Removes black, blue, brown and red tattoo pigments from eyebrows, eyeliner, lip lines and other parts of the body.
  • Eliminates age spots, blemishes, birthmarks and pigment changes.

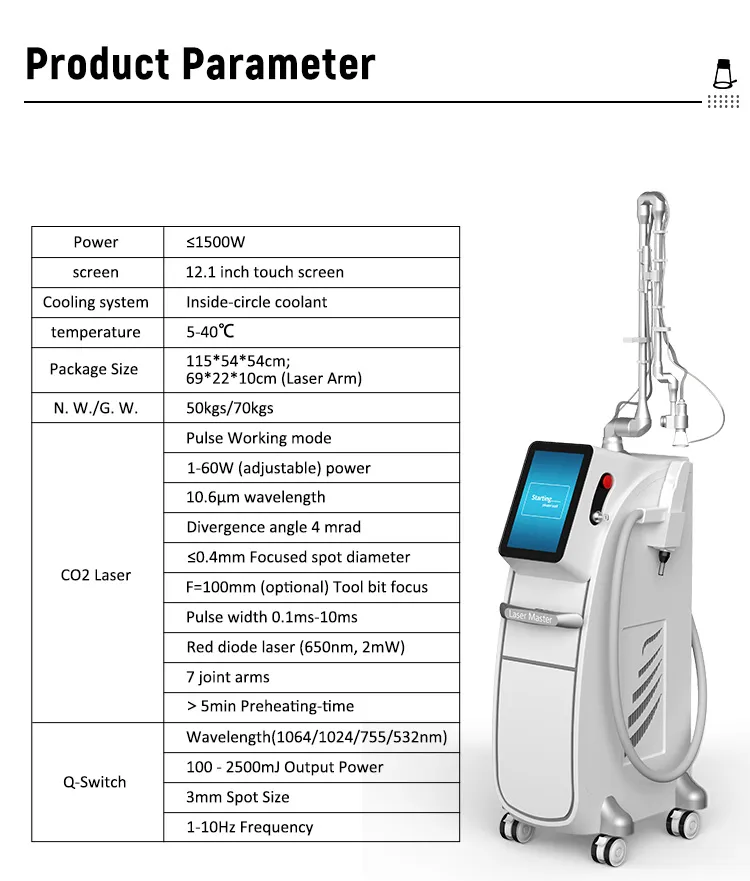

Product Parameters
Parameter Specification Details
Power ≤1500W

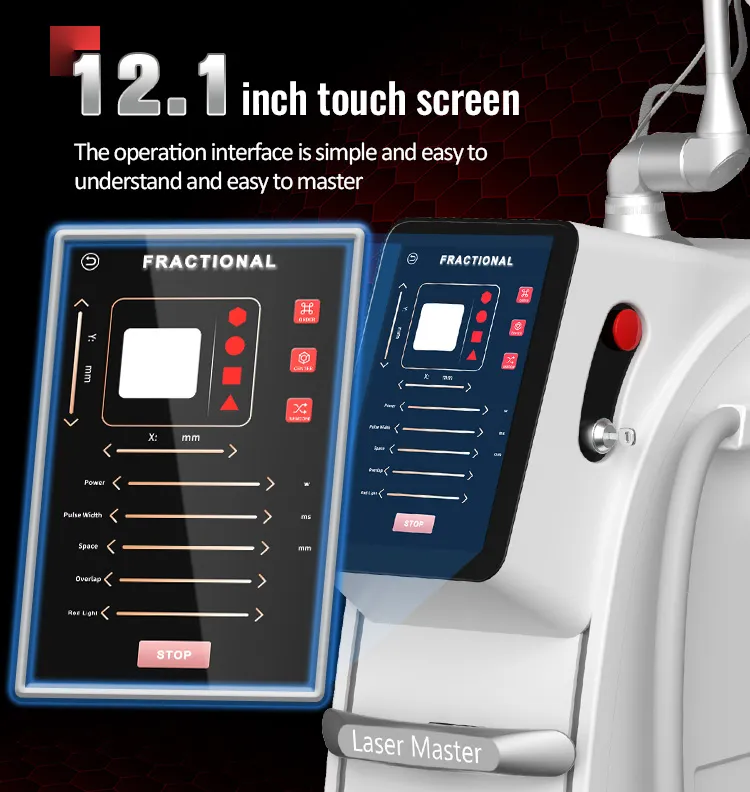

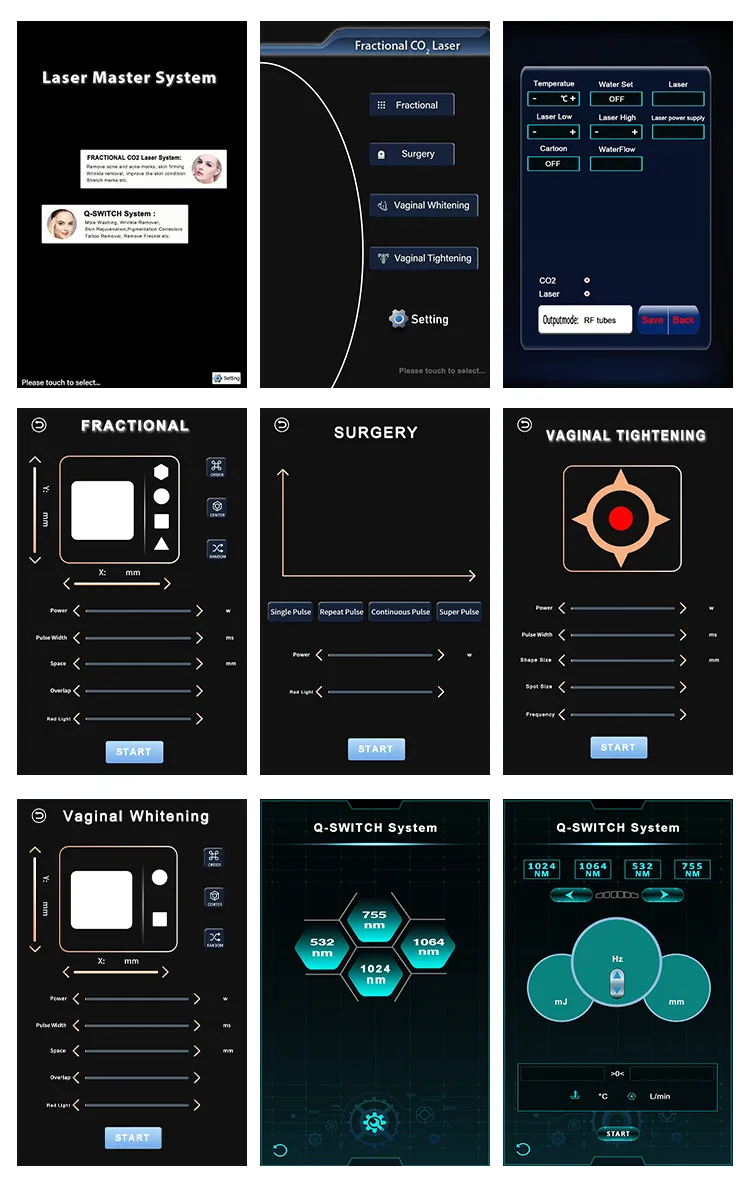

Display screen 12.1inch touch screen
Cooling system Inside-circle coolant
CO2 Laser Working mode Pulse
Output power 1-60W (adjustable)
Laser wavelength 10.6μm
Divergence angle 4mrad
Focused spot diameter ≤0.4mm
Tool bit focus F=100mm (optional)
Pulse width 0.1ms-10ms
Aiming beam Red diode laser (650nm, 2mW)

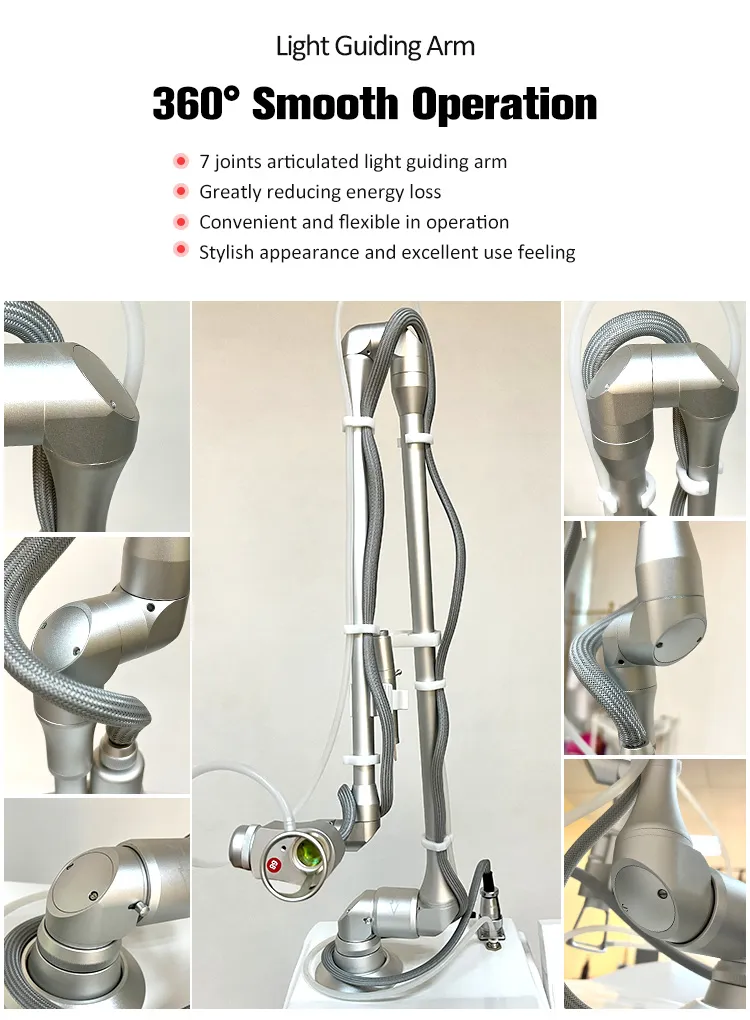

Transmission system 7 joint arms
Preheating-time >5min

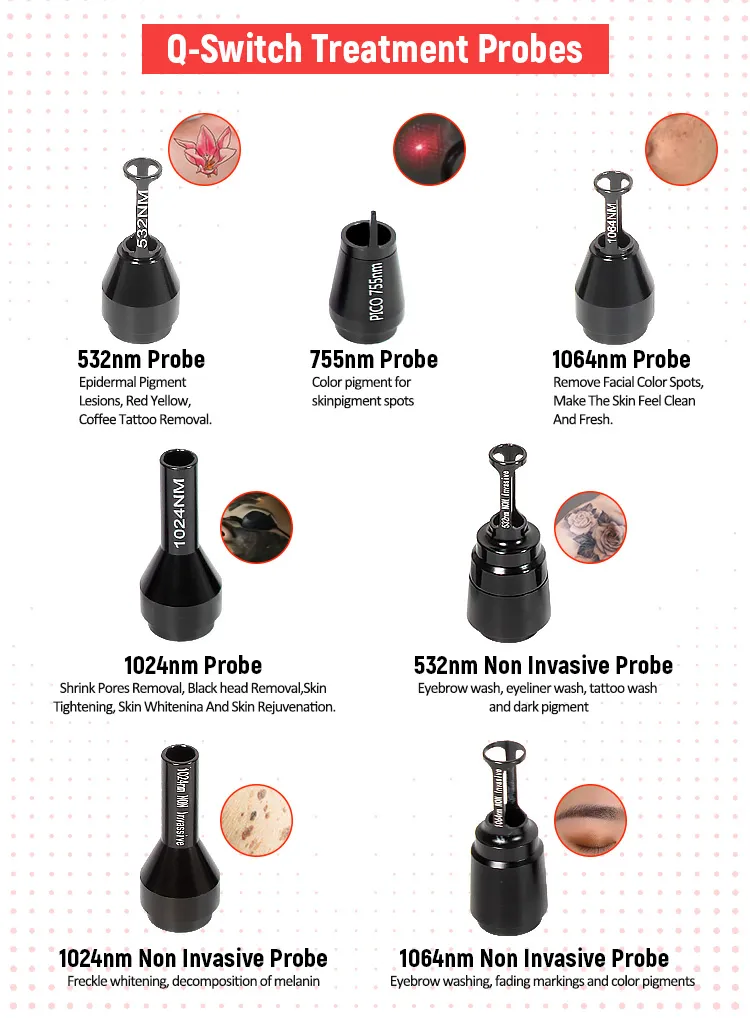

Q-Switch Wavelength 1064nm; 1024nm; 755nm; 532nm
Output Power 100 - 2500mJ
Spot Size 3mm
Frequency 1-10Hz
Working environment temperature 5-40ºC
Air pressure / Humidity 86Kpa-106 Kpa / <80%
Electromagnet No electromagnet interrupt
Other working environment No obvious shaking or airflow
N. W./G. W. 50kgs/70kgs
Package Size 115cm×54cm×54cm; 69cm×22cm×10cm (Laser Arm)

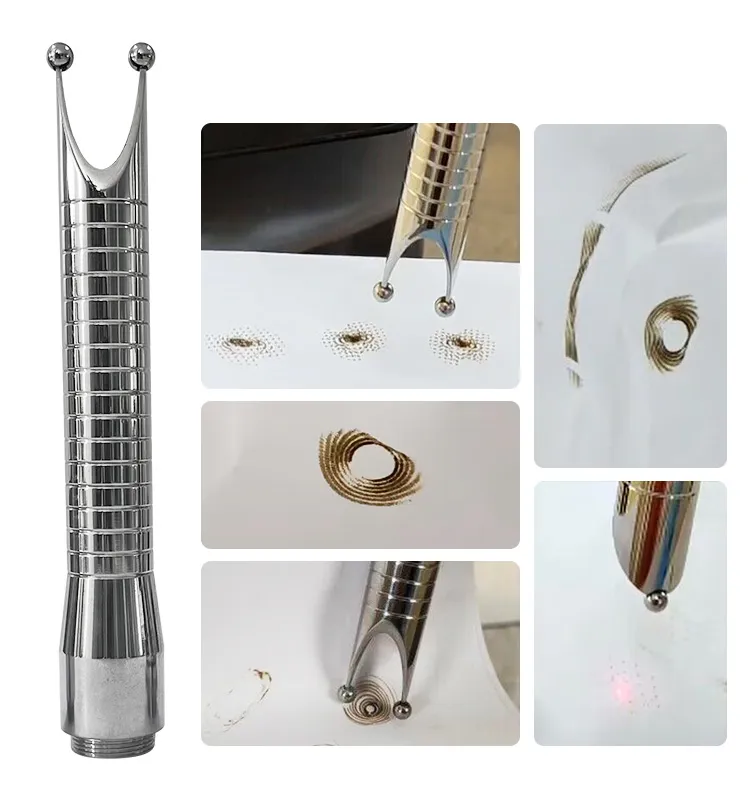

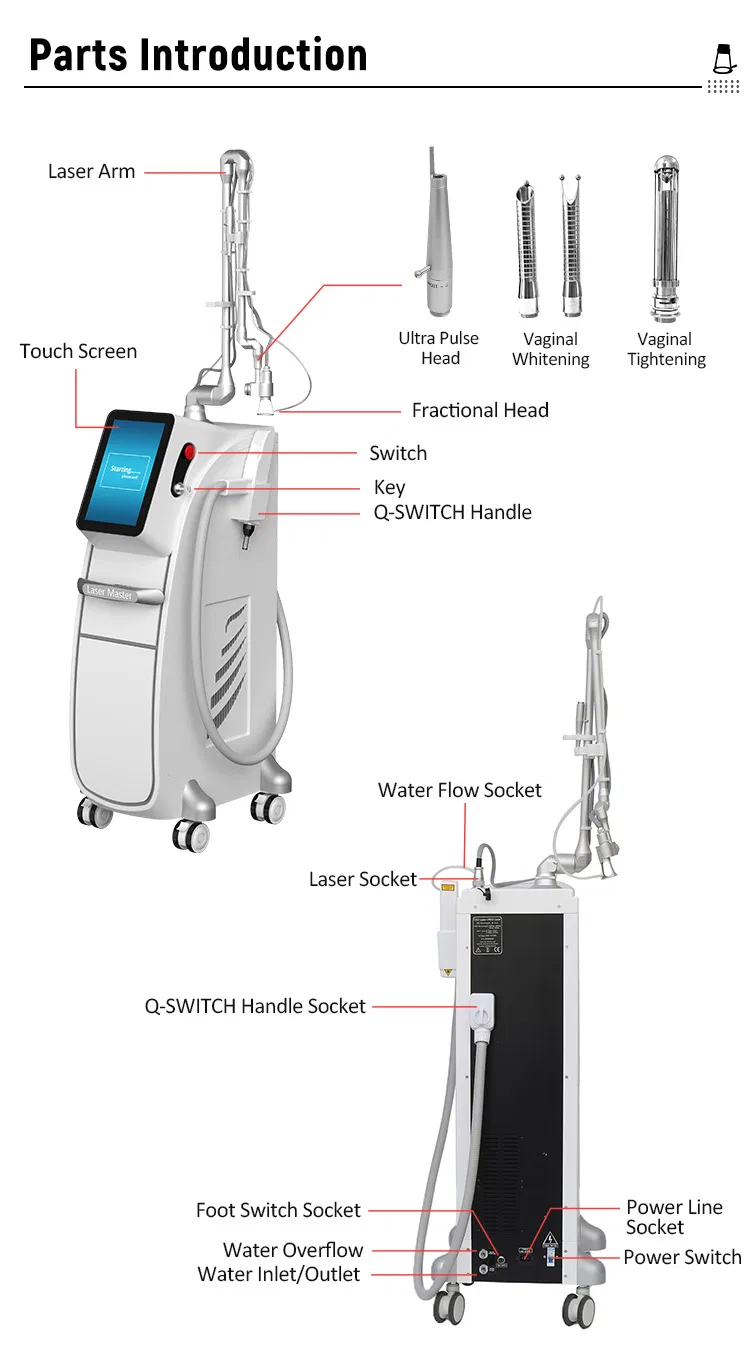

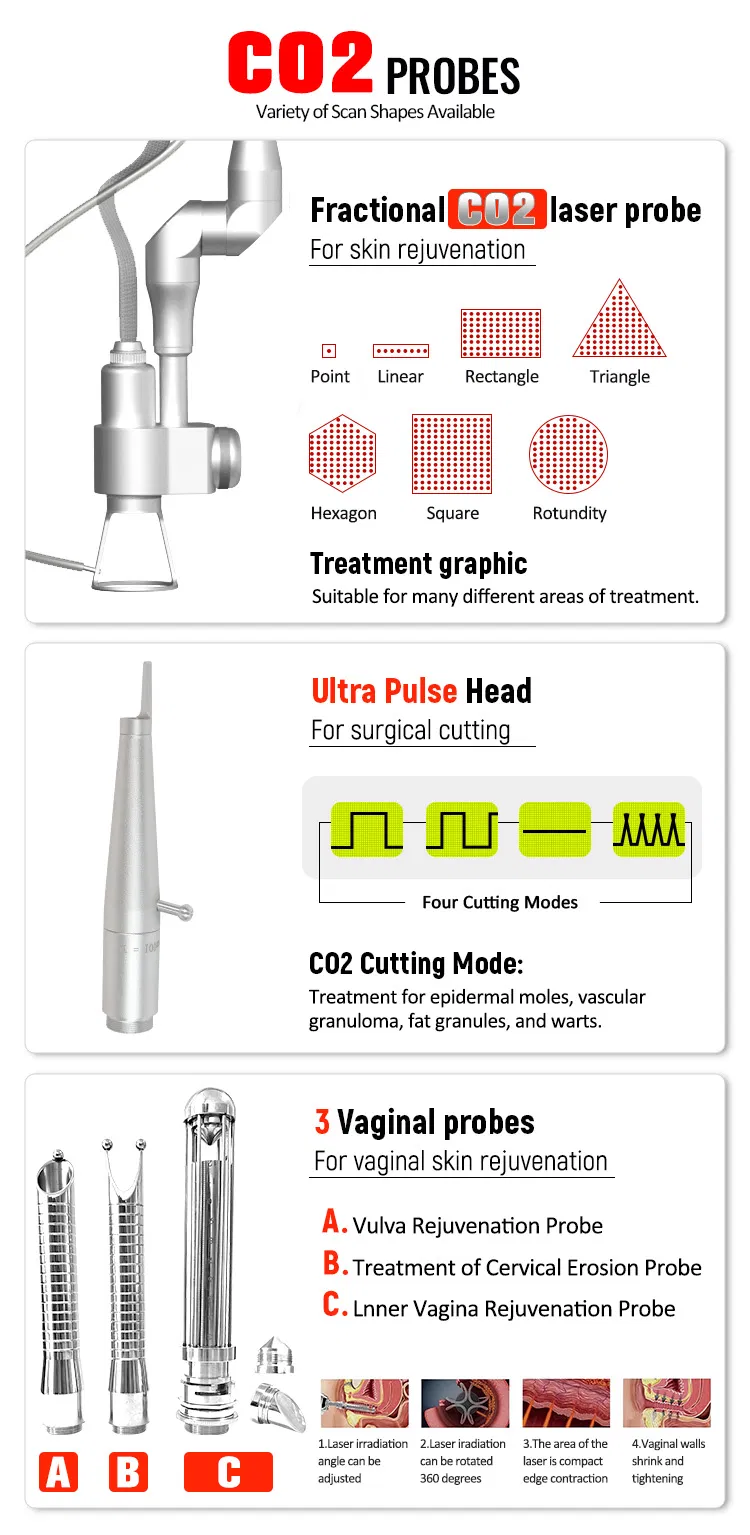

Device Structure and Accessories

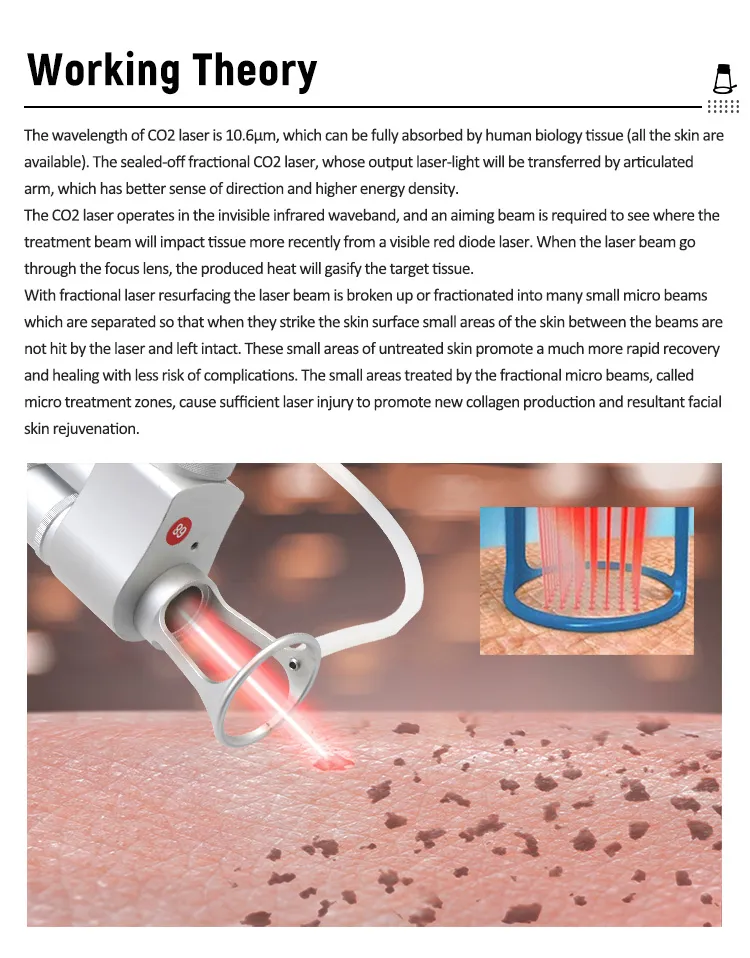

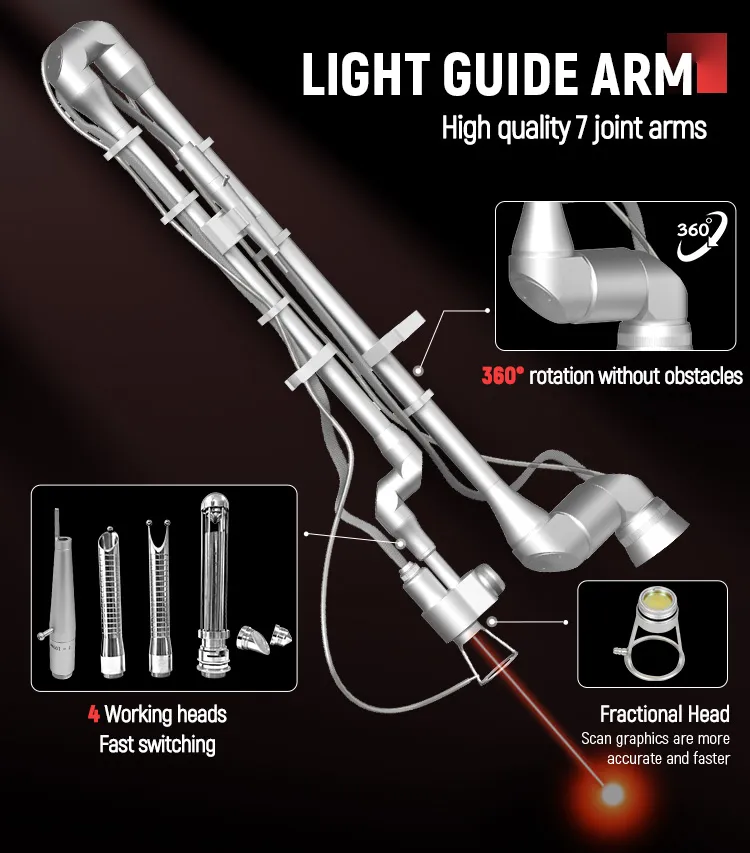

The wavelength of CO2 laser is 10.6μm, which can be fully absorbed by human biology tissue (all the skin are available). The sealed-off fractional CO2 laser, whose output laser-light will be transferred by articulated arm, which has better sense of direction and higher energy density.
The CO2 laser operates in the invisible infrared waveband, and an aiming beam is required to see where the treatment beam will impact tissue more recently from a visible red diode laser. When the laser beam go through the focus lens, the produced heat will gasify the target tissue.

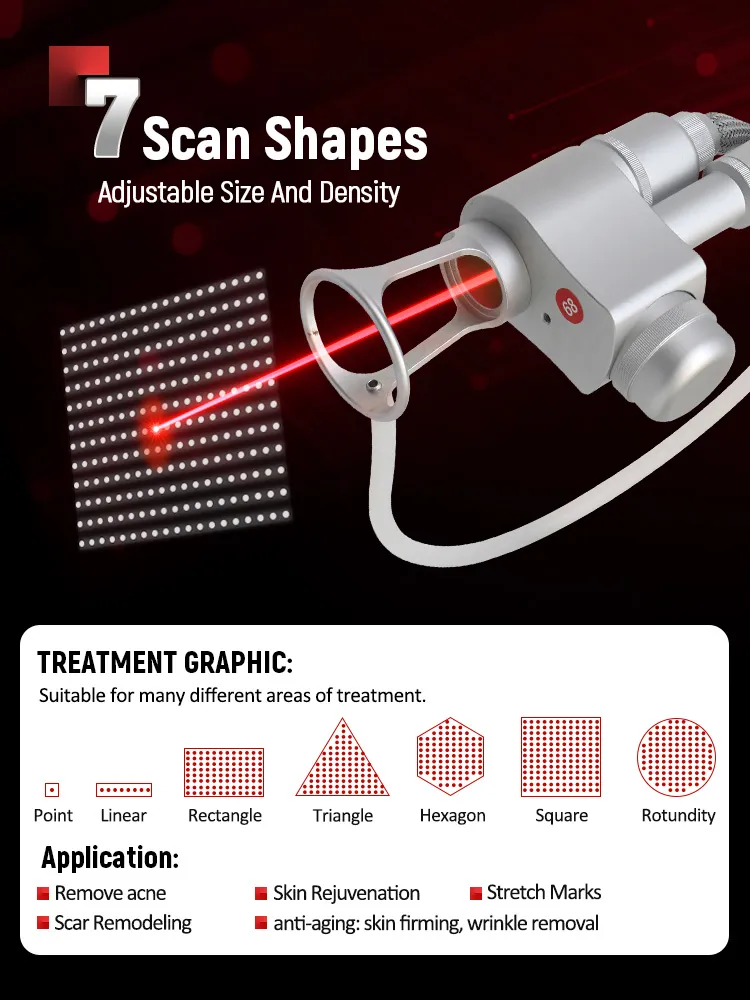

With fractional laser resurfacing the laser beam is broken up or fractionated into many small micro beams which are separated so that when they strike the skin surface small areas of the skin between the beams are not hit by the laser and left intact. These small areas of untreated skin promote a much more rapid recovery and healing with less risk of complications. The small areas treated by the fractional micro beams, called micro treatment zones, cause sufficient laser injury to promote new collagen production and resultant facial skin rejuvenation.
Detailed Photos
Application Scope
  • Remove acne and acne marks.
  • Eliminate dry pattern, fishtail, etc around the eyes.
  • Anti-aging: skin firming, wrinkle removal, improve the skin condition.
  • Treatment of pigmentary lesions such as freckles and ostrum miracles.
  • Scar: treatment of depressed, old dispersion, convex vascular / fibrous scar.
  • Stretch marks.

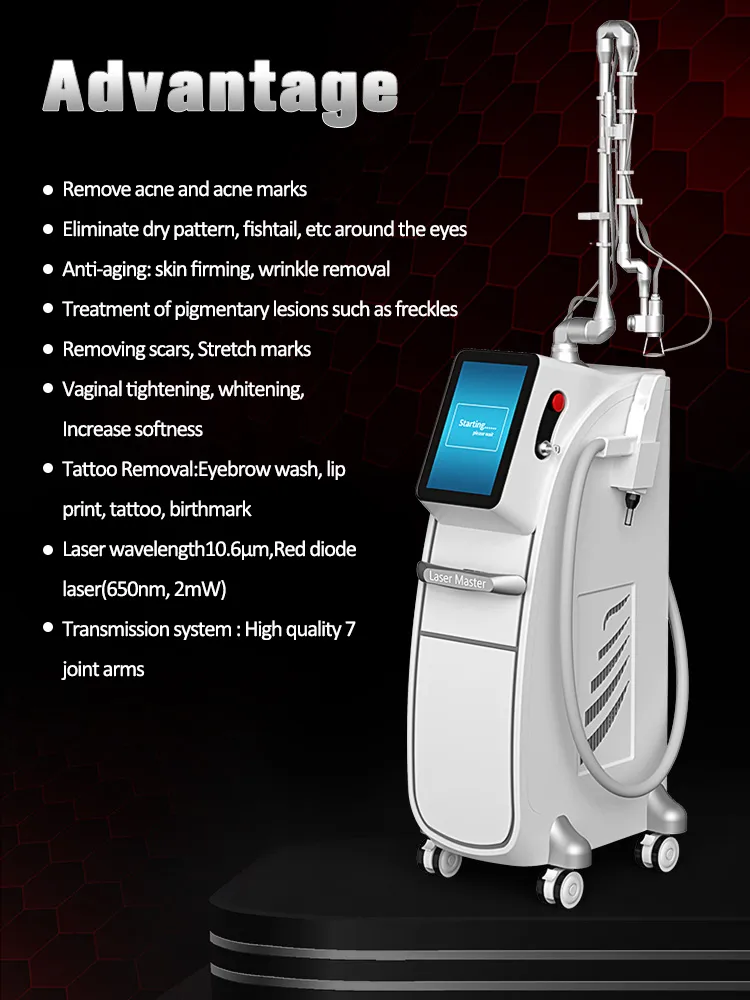

Our Advantages
Feedback Details
Proven clinical results show high satisfaction rates in skin rejuvenation, scar treatments, and vaginal tightening treatments.
Frequently Asked Questions
When will the machine be delivered to me?
We will make delivery within 7-15 days after payment is made.
Do you provide training services?
We provide online training services. After training, we will issue you a training certificate.
What if the machine breaks down?
Under warranty, we will send you free replacement components. The machine features a modular design, ensuring every part is easy to replace.
What about the guarantee?
We offer a 1.5-year warranty for the machine body and 1 year for the handle. Under guarantee, if the handle breaks down, we will send you a new one.
What is the wavelength of the CO2 Laser?
The wavelength of the CO2 laser is 10.6μm, which is highly absorbed by human biological tissue, making it suitable for all skin types during fractional resurfacing.
Which wavelengths does the Q-Switch laser system support?
The Q-Switch laser system supports 1064nm, 1024nm, 755nm, and 532nm wavelengths, designed to target and break down red, blue, black, and brown pigments effectively.
